100% Japanese high performance Racing cylinder head delivered with Racing camshaft and RISING-SUN rocker arms.
The AAC ring gear is also included (28 teeth, 2 mounting holes)
This cylinder head is designed for DAX 6V OT.
All other interior parts are original HONDA in their pouch.
Stud center distance type HONDA.
Big valves : 25mm intake and 22mm exhaust !
(For info a DAX St70 NT cylinder head is equipped with 23/20 valves, and 25/22 on 6V OT)
- Inlet pipe diameter: 24mm
- Exhaust pipe outlet diameter: 20mm
- Dome diameter: 47.5mm
The RISING-SUN Superhead is compatible for 6V and 12V HONDA and 50cc to 110cc replicas.
Each part of this cylinder head can be ordered individually.
Valves KITACO "standard" in 25/22 are compatible.
Model recognized for its reliability over time and its performance!
ATTENTION, cylinder head delivered without the covers (available in detail on the site), it is normally possible to adapt the covers of your original cylinder head.
We advise the installation of reinforced valve springs if you use a high compression piston.

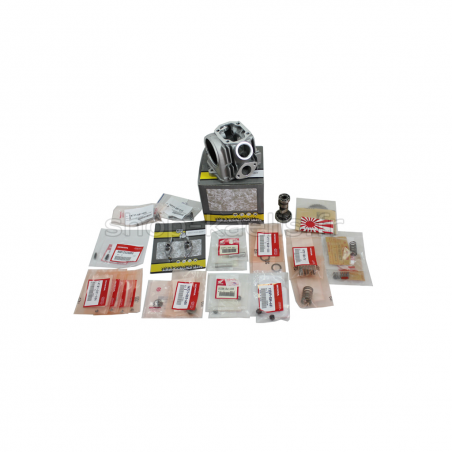

Delivered as on the picture, to assemble yourself.
