Reference 30103-082
Ideal for improving the performance of a 50cc or 70cc, carburetor preset for 50cc!

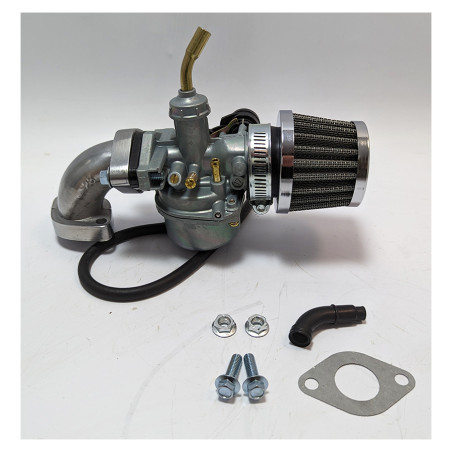

19mm carburettor kit with intake pipe (replica of Keihin PB19).
We recommend fitting a fuel tap part no 30707-037
Carburetor supplied with:
- Inlet pipe and 20mm diameter bakelite ring
- Inlet pipe gasket on cylinder head side and screws
- Conical air filter
Refurbishment gaskets kit available 30103-102
Deliverable on
1 week
20mm diameter intake pipe.
Distance between pipe and carburettor: 48mm
Cylinder-head mounting center distance: 45mm
Fitting diameter for air filter: 34mm
Used for 50cc to 88cc engines (ideal for improving the performance of a 50cc engine, for example).
Mounted in the carburetor:
Main jet : KEV
Idle jet: KEP
Compatible with Keihin PC20 (KEV) main jets: available HERE or HERE
We recommend that you always order main jets with your carburetor to adjust your carburation!
