88cc TRAILBIKES stage 3 cylinder/piston/valve/cylinder head kit - 12V

88cc Big Bore engine kit TRAIL BIKES for 50cc to 90cc Chinese engines and all HONDA 12V engines

For engines with 41.4mm connecting rod (type HONDA NT)

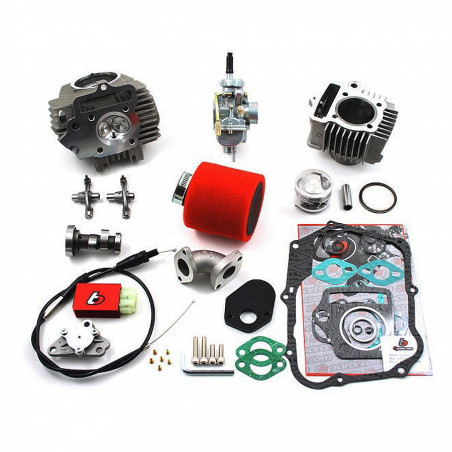

Supplied with :

- aluminum cylinder

- 52mm high-compression piston with rings, pin and clips

- large-valve cylinder head, 25mm intake and 22mm exhaust

- rACING camshaft

- 20mm carb kit with intake pipe and bakelite heat shield ring

- gas cable

- double-foam air filter

- 200% flow oil pump

- cDI RACING box TRAIL BIKES

- engine top gasket and clutch housing gasket

Reinforced clutch springs are recommended: 306022-037 (manual) or 306022-115 (semi-auto)

Please note: to fit the kit on a Chinese engine, you need to order the camshaft ring gear 28 teeth and 2 mounting as well as theCDI 2-spindle/1-spindle adapter and a 1.5mm drill bit to increase oil flow to the crankcase.

High-performance, reliable and robust motor kit HONDA TRAIL BIKES !

Reference TRAIL BIKES: TBW0936

This kit also exists for 6V OT motor with specific piston, reference TRAIL BIKES: TBW0939

12V model:

TBW0365 - Piston

TBW0206 - Gaskets

TBW0156 - Cylinder

TBW0125 - Carburettor

TBW0273 - Inlet pipe

TBW0301 - Accelerator cable

TBW0398 - Air filter

TBW0300 - Camshaft

TBW0949 or TBW0385 - Cylinder head and valves assembly

TBW0226 - High flow oil pump

TBW0262 - CDI

TBW0294 - Nozzles

TBW0287 - Gaskets

Prohibited on public roads, for use in competition only, or on closed, private circuits only.
