Reference 30310-078

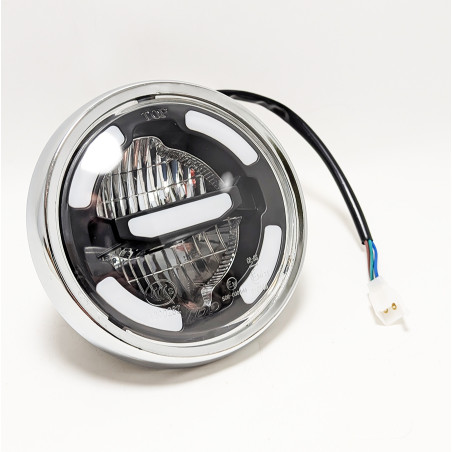

Complete headlamp for DAX HONDA or replica.
Powerful, economical LED lighting.
3-screw mounting.
Casing not included, compatible with all Skyteam, Zhenhua, TNT City, Spigaou, Jincheng etc...
When fitting this type of headlamp, we recommend insulating the bottom of the original casing with electrician's tape or protecting the circuit board!
The printed circuit board is bulky, making it difficult to install this headlamp in the casing, which is already well filled with wiring harnesses.
Épuisé
Complete headlamp for DAX HONDA or replica.
Powerful and economical LED lighting.
Modern look, new generation !
Casing not included.
For the assembly of this type of headlight, we advise to isolate the bottom of the original casing with electrical tape.
The printed circuit board is bulky, which makes it difficult to install this headlight in the casing already filled with the wiring harness.
It is necessary to take its time and not to force to crush at least the connectors.
Use the power supply of the pilot light connected to the battery, do not connect on the electric arrival of the low beam regulated by the beam, this headlight is very sensitive to the variations of intensities.
CE approved on public roads
Color correspondences :
- Green wire with black adhesive tape: Ground (corresponds to the green or black/white wire of the beam)
- Red wire: Night light (corresponds to the Brown wire of the beam)
- White wire: Code (corresponds to the White or Pink wire of the beam)
- Blue wire: Headlight (corresponds to the Blue wire of the harness)
- Brown wire: 5 leds contour lighting
