Reference 30310-077
Warning: designed for deep casing only, otherwise impossible to install your meter cable: 30310-109
Headlight optics for MONKEY HONDA or replica.
Powerful, economical LED lighting.
2-screw mounting.
Glass window.
We advise you to read the full description carefully.
Épuisé

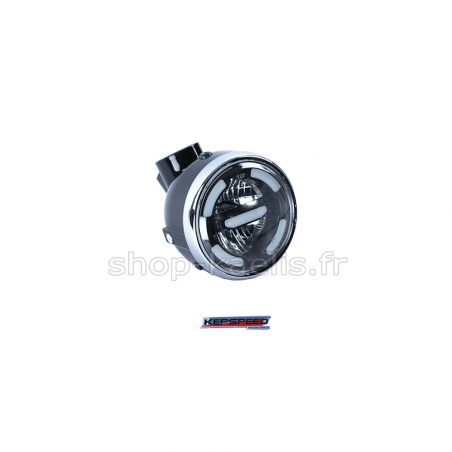

Complete headlamp for MONKEY HONDA or replica.
Powerful and economical LED lighting.
Modern look, new generation !
Casing not included.
For the assembly of this type of headlight, we advise to isolate the bottom of the original casing with electrician tape.
Or the assembly of a specific plastic casing present in the associated products below.
The printed circuit board is bulky, so it is difficult to install this headlight in the casing already filled with the wiring harness.
It is necessary to take its time and not to force to crush at least the connectors.
CE approved on public roads
Correspondence color :
- Green wire with black adhesive tape : Ground (corresponds to the green or black/white wire of the harness)
- Red wire: Night light (corresponds to the Brown wire of the beam)
- White wire: Code (corresponds to the White or Pink wire of the cluster)
- Green wire: Headlight (corresponds to the Blue wire of the harness)
