Reference 30601-035SILVER

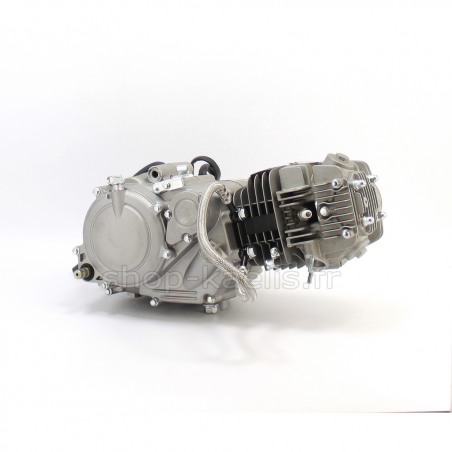

MOTOR IDENTICAL TO THE PHOTO WITH : Specific Cdi, complete harness included !
IGNITION SMALL ROTOR with light output.
Radiator kit recommended to increase the life of your engine, available : HERE
Compatible clutch cable available HERE
Engine ZONGSHEN 125cc with big valves 27/23 cylinder head, racing camshaft and high compression piston
Very strong and powerful at the same time this engine is THE reference of Chinese 125cc engines for mini 4 stroke motorcycle.
Carburetor kit very powerful with this engine HERE or available HERE !
Out of stock
1 week
MOTOR IDENTICAL TO THE PHOTO WITH : Specific Cdi included !
We recommend the 105cm clutch cable reference 30807-029
New engine ZONGSHEN 125cc with big valves 27/23 cylinder head, racing camshaft and high compression piston.
Very powerful and robust engine at the same time; the most powerful and reliable Chinese 125cc!
We advise you to drain the storage oil present in the engine, oil available HERE
Height of the cylinder (without the skirt) : 59mm.
Connection for oil cooler on crankcase.
Crankcase with separate oil filter.
4 speed gearbox with first gear down 1N234
Clutch start: possibility to restart without shifting to neutral.
Reinforced clutch with 5 original discs!
Included are:
- Gear selector
- Kick
- Small external rotor ignition with headlight connection
- Big CDI box Daytona type
- Intake pipe + gaskets
THE reference for 125cc mini 4 stroke engines! Powerful, torquey and reliable!
Ideal base for a preparation in big displacement until 150cc.
Estimated power : 12,5CV
Width of the crankcases to the points of fixing on frame:
Top: 93mm
Bottom: 82mm
Pinion mounted on the engine: 15 teeth, pitch 420, inner diameter 17mm.
Connecting rod stroke: 54 mm
Piston diameter: 54 mm
