Reference 30103-068
Rojo injection to carburetor and CDI conversion kit.
The CDI is an adjustable Racing model.
Ideal to convert a Skyteam or Zhenhua E4 to carburetor.
We recommend the 19mm carburetor for 50cc 30103-018
And the 24mm carburetor for 125cc 30103-024
In stock
Rojo 50cc or 125cc injection conversion kit for upgrading to CDI and standard carburetor.
Connects to the original harness, you'll just have to fit a carburetor of your choice.
You can keep your voltage regulator, battery, starter and central blinker.

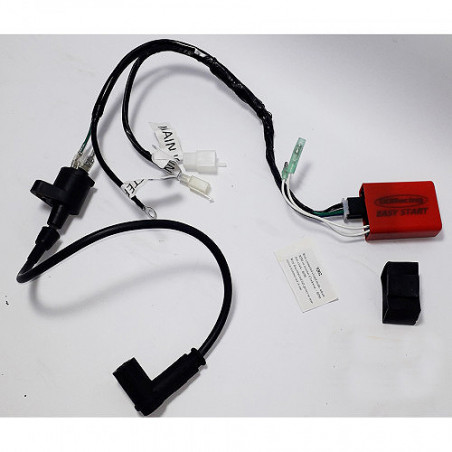

Includes :
1 x CDI type D/C 4-pin variable and adjustable advance
1 x Sub harness
1 x High-voltage coil
All pre-wired with plugs for Rojo EFI Skyteam Dax and Monkey injection systems
Before connecting, check that the wire colors match the wiring.
The 6-pin plug with 1 black/red wire matches the black on the wiring plug.
2-pin plug Green to green Blue / white to Blue / white
The 2 white wires connected: the motor is limited and adjustable on the box, disconnected = free performance
This DC type CDI requires a battery in good condition.
