Reference 30703-055

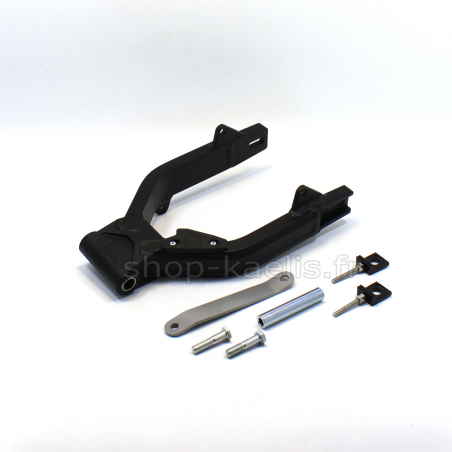

Swingarm aluminium +0 KEPSPEED black anodized for DAX, exemplary finish
Chain tensioners different from the picture, they are anthracite grey / titanium.
Provide a chain of a few links longer because the wheelbase increases very slightly.
Not compatible with 12 inches rims because the base that fits in the frame is too thick.
Out of stock
Swingarm aluminium +0 KEPSPEED black anodized for DAX, exemplary finish.
Very rigid model, large section, well reinforced and well designed, mounted on teflon bushings.
Aluminum of very good quality providing a robustness to any test!
Delivered with shock absorber fixing screws, brake rod and protection pad for the chain.
Dimensions :
- Total length all included: 35,2cm
- Internal distance (width) at the passage of the wheel: 16.8cm
- Distance between the arm axle and the rear wheel axle: 31,5cm (tensioners in central position)
Attention your wheel axle must be about 22cm under the head.
- Width of the arm at the rear all included: 20,7cm (at the level of the wheel axis)
- Width of the arm at the front all included: 9,8cm (at the level of the frame axis)
- Aluminum profile thickness: 25mm and height: 50mm
- For rear wheel axle diameter 12mm and swingarm axle diameter 10mm.
