Reference 30703-039
Aluminium swingarm +0 (original size) KEPSPEED for DAX HONDA and replicas.
Chain a few links longer as wheelbase increases slightly.
Available in black part no 30703-055
In stock

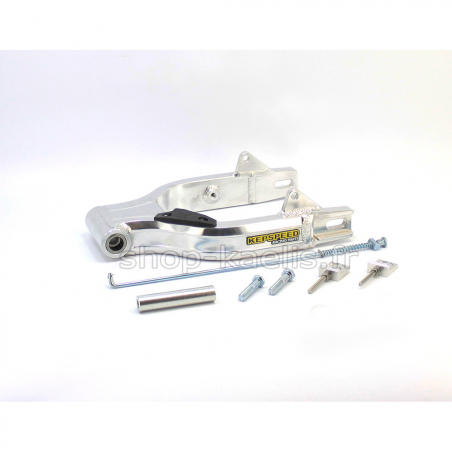

Aluminium swingarm +0 (original size) KEPSPEED for DAX HONDA and replicas.
Very rigid model, large section, well reinforced and well designed, mounted on silent blocks.
Very good quality aluminum providing a good robustness of the rear axle!
Delivered with shock absorber fixing screws, brake rod, chain tensioners and protection pad.
WARNING: not compatible with a 120/90x10 tire mounting, this one is too big and touches the bottom of the arm on the frame side.
Dimensions :
- Total length all included: 35,2cm
- Internal distance (width) at the wheel passage: 17cm
- Distance between the arm and the rear wheel axle: 31,5cm (tensioners in central position)
- Width of the arm at the rear all inclusive: 20,7cm (at the wheel axle)
Attention your wheel axle must be approximately 22cm under the head.
- Width of the arm at the front all included: 9,8cm (at the level of the frame axis)
- Aluminum profile thickness: 25mm and height: 50mm
- For rear wheel axle diameter 12mm and swing arm axle diameter 10mm.
