Reference 30703-053

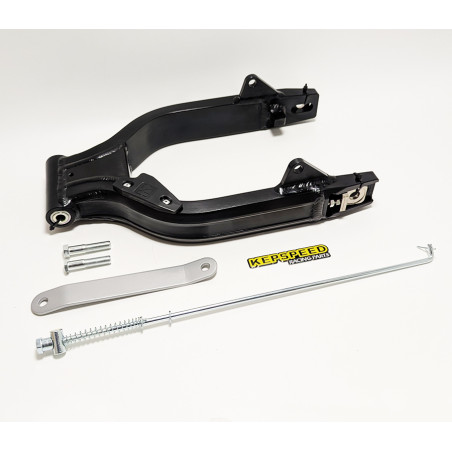

Aluminum swingarm +4 KEPSPEED for DAX euro 4 with rear disc brake.
Compatible with DAX Honda and replicas (Skyteam, TNT...50cc or 125cc) with fuel injection.
Ideal for mounting 12" rims.
ARM NOT COMPATIBLE WITH DRUM BRAKE
Caliper mounting available part no 30403-071
Out of stock
Aluminium swing arm +4 KEPSPEED for DAX. ARM NOT COMPATIBLE WITH DRUM BRAKE
Aluminium turnbuckle system cut in the mass.
Very rigid model, well reinforced and very well designed.
Very good quality aluminum for strength and road holding.
Delivered with shock absorber fixing screws, brake rod and chain protection pad.
Requires a 22cm wheel axle under the head.
Dimensions :
- Total length all included: 40cm
- Internal distance (width) at the passage of the wheel: 17cm
- Width of the arm at the rear all included: 22cm (at the level of the wheel axis)
- Width of the arm at the front all included: 9,8cm (at the level of the frame axis)
- Aluminum profile thickness: 25mm and height: 50mm
- For rear wheel axle diameter 12mm and swingarm axle diameter 10mm.
