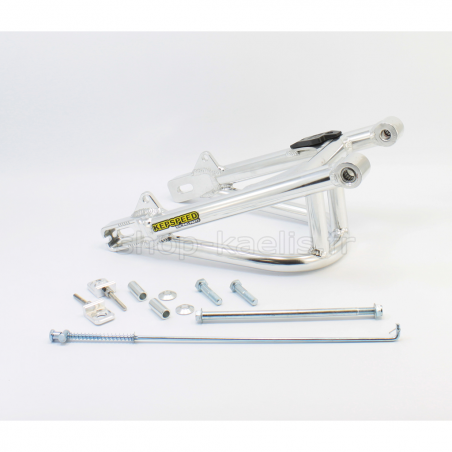

Aluminium swingarm +10 KEPSPEED for MONKEY, exemplary finish.
Very rigid model, well reinforced and very well designed, mounted on needle cages.
Aluminum of very good quality providing a robustness to any test!
Delivered with wheel axle, shock absorber fixing screws and chain protection pad.
Dimensions :
- Total length all included: 42cm
- Internal distance (width) at the passage of the wheel: 16,8cm
- Center distance between the arm and the rear wheel axle: 37cm
- Width of the arm at the rear all inclusive: 21.5cm (at the wheel axle)
- Width of the arm at the front all included: 19,8cm (at the level of the frame axis)
- Diameter of the aluminum profile: 32mm
- Diameter of the aluminum profile at the level of the reinforcement: 26,5mm
- For rear wheel axle diameter 12mm and swingarm axle diameter 10mm.
