Reference 30304-033
Top-of-the-range, high-performance CDI Racing Bolt gearbox, designed in England by a specialist company.
Highly effective on most Honda and Chinese 4-stroke 12V mini bikes of all displacements: Dax Monkey Pbr Trex Chaly CRF50 Dirt Bike Pit bike...
Please check your ignition flywheel: your sensor must be rectangular, as shown in the photo.
In stock
New version of the Bolt Easy Start CDI gearbox with smoother down-feed for better torque distribution.

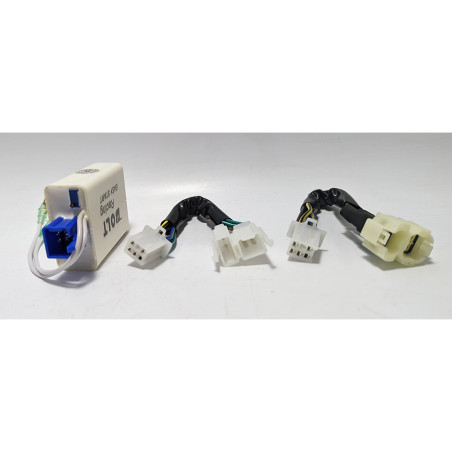

With fixed 5-pin plug for the majority of DAX Monkey Pit bike harnesses, supplied with 6-pin Chinese-style or 6-pin Honda-style connecting wires, so it's 3 in one.
Possibility of activating or deactivating the rpm limitation.
Don't order before checking your flywheel, the sensor on the flywheel must be rectangular like on the picture.
This BOLT A/C CDI box is designed with an adjustable/switchable rev limiter from 3,000 rpm to 13,000 rpm.
Works with flywheel (rotor) 88 mm 108 mm with 12 mm to 15 mm triggers WILL NOT WORK with round triggers, check your ignition rotor.
Built-in rev limiter :
The box has a pair of wires coming out of the unit. Connect them to engage the rev limiter, you can now adjust the boiter using the brass screw.
Leave the wires unconnected to allow free revving.
The small brass screw on the side of the unit limits max revs from 3000 RPM to 13000 RPM; turn clockwise to increase revs and anti-clockwise to reduce revs
A switch can be fitted to engage or disengage rpm on demand.
Unlike many standard or performance CDIs, this model reduces the starting advance, making the engine much less sensitive to kickback on start-up.
Dimensions
Length 65mm Width 25mm Thickness 22mm
With blue plug, total length 85mm
We advise you to mount the cdi surrounded by rubber to avoid vibrations and contact with your chassis, and to protect it from humidity.
All CDIs are bench-tested to test the advance curve before shipment.
