Reference 30304-014

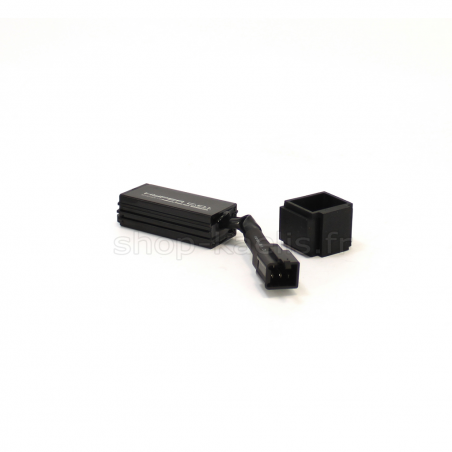

Hyper CDI box for single-pin connection type DAX HONDA 12V or DAX replica.
Compatible with all DAX MONKEY PBR T-REX motorcycles SKYTEAM, ZHENHUA, SPIGAOU, TNT CITY, KYOTA etc...
Debrides your motorcycle at ignition for increased power.
High performance, high resistance on all displacements from 50cc to 190cc!
THE REFERENCE FOR CDI RACING!
Deliverable on
1 week
Hyper CDI box for single pin connection type DAX replica.
Compatible on all Chinese 4 stroke mini bikes.
MADE IN JAPAN quality !
Japanese CDI to connect without adapter on DAX / Monkey / PBR Skyteam, Spigaou, Jincheng etc.
Change of the original ignition curve with a clear increase of the engine speed.
Performance TAKEGAWA recognized !
Model TAKEGAWA: 05-03-0007
Correspondence of the wire colors :
- Blue : Ignition pickup
- Green : Ground
- Red/Black : Low voltage of the AC ignition
- Black/White: Ignition cut-off (grounding this wire stops the ignition)
- Yellow/Black : HV coil
Warning, the Chinese ignitions, of less good quality than the HONDA models, can damage the CDI Racing boxes, due to overvoltage problems.
We can't take in warranty these boxes.
The 12V model HONDA is the best regulator(ref : 30309-044) to protect your electrical installation.
