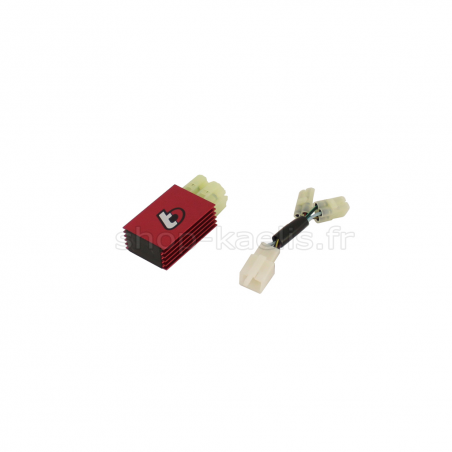

High performance CDI gearbox TRAIL BIKES.
Increased performance with improved revving.
Gain in torque, eliminates rpm limitation.
Allows for higher rpm and better top speed.
One of the best quality/price ratio on the market, very resistant, real power gain!
Compatible with all Chinese minis with its adapter or without for beams HONDA (choice).
Correspondence of wire colors :
- Blue : Detector (Pickup) of the ignition
- Green : Ground
- Red/Black : Low voltage of the AC ignition
- Black/White: Ignition cut-off (grounding this wire stops the ignition)
- Yellow/Black : HV coil
Be careful, Chinese ignitions, of less good quality than HONDA, can damage CDI Racing boxes, due to overvoltage problems.
We can't take in guarantee these boxes.
We advise you to install a 12V voltage regulator HONDA available ref : 30309-044 to protect your electrical installation.
TRAILBIKES reference : TBW0348 (adapter) + TBW0262 (CDI)
