Reference 30301-052

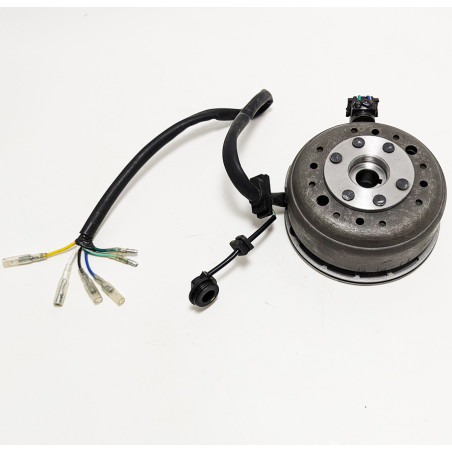

Ignition compatible with all mini 4-stroke engines.
This ignition features a neutral switch and lighting: current generation for 12V headlights and indicators.
Supplied complete with rotor + stator and O-ring + central spinnaker seal.
Robust and functional, this 12V ignition is universal for all 4-stroke mini-motorbikes and compatible on 50cc to 160cc LIFAN, YX, HONDA, DAYTONA, ZONGSHEN etc...
Not compatible on engines with electric starter unless the latter is disabled.
Deliverable on
1 week
Ignition compatible with all mini 4-stroke engines.
This ignition features a neutral switch and lighting: current generation for 12V headlights and indicators.
Dimensions:
Plate outer diameter (stator): 115mm
Central diameter of plate with spinnaker seal: 18.9x30x5
Flywheel inner diameter (rotor): 87mm
Flywheel outer diameter: 111mm
Connections:
- Black/red: + coil
- Green: ground (-)
- Blue/white: CDI
- Yellow: + controlled for lights (+12V)
- White: + controlled for battery charging (+9V)
- Green/red: neutral switch
Robust and functional, this 12V ignition is universal for all 4-stroke mini-motorbikes and compatible with all displacements.
