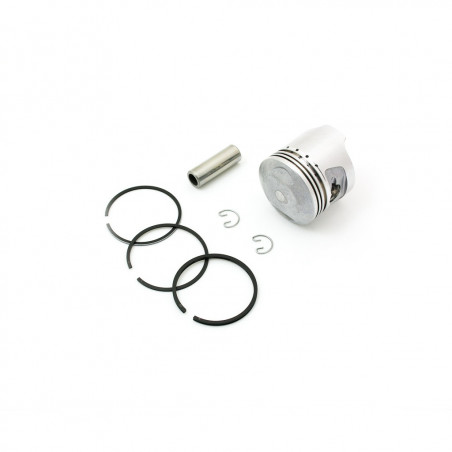

Piston + rings DRP 48mm for 70cc 6V OT cylinder head (repair coast 1.00).
Complete model with rings, clips and 13mm diameter axle.
Compatible on HONDA engines with OT big valves cylinder head.
Designed for HONDA OT engines with old style short stroke crankshaft because the piston head is higher than on 12V pistons.
Check with the dimensions below.
Dimensions :
Diameter: 48mm
Piston pin: 13mm
Total height all included: 49mm
Middle height of piston pin/piston head (without dome): 20,5mm
Middle height of piston pin/piston head (with dome): 25mm
Total length of the piston from the head to the lowest part of the piston (without the dome): 44.5mm
High quality manufacturing.
Equivalent to HONDA: 13105-087-000 + 13050-087-004
