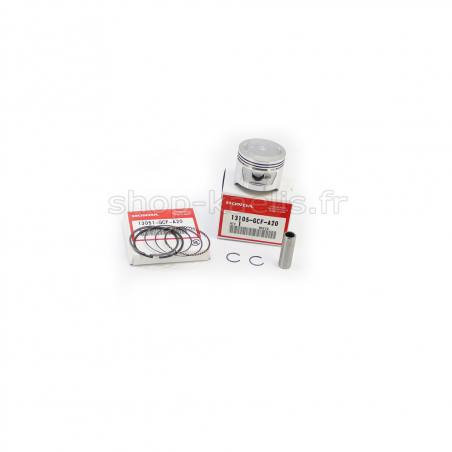

Piston + rings HONDA 48mm for 70cc 12V cylinder head.
Complete with rings, clips and 13mm diameter pin.
Compatible with Chinese engines or with the 75cc kit KITACO for example.
Dimensions:
Diameter: 48mm
Piston pin: 13mm
Total height all-in: 41.5mm
Center height piston pin/piston head (without dome): 17mm
Center height piston pin/piston head (with dome): 19.5mm
Total piston length from top to bottom of piston (without dome): 39mm
The hollow piston in the photo is the piston from the kitaco 75cc cast-iron kit for 12V. It is shown in the photo as an example for comparison purposes only, and is not included.
High manufacturing quality: MADE IN JAPAN
References HONDA: 13105-GCF-A20 + 13051-GCF-A20 + 13111-GB0-910 + 94601-130-00
