Reference 30503-048
Pair of hubs type MONKEY in aluminium painted in black planned to be compatible on DAX.
Attention: provide additional spacers to adapt these hubs on your bike, the width of the hubs varies according to the models.
Disc screw available HERE
Crown screws available HERE
Screws for rims available HERE
Deliverable on
1 week

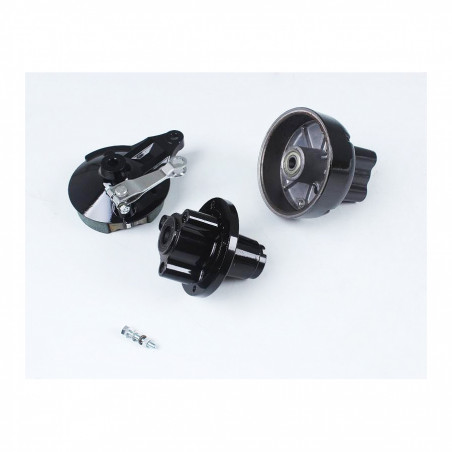

Pair of MONKEY type hubs in black painted aluminum designed to be compatible on DAX.
For 12mm diameter wheel axles.
Front hub for disc brake and rear drum hub with flange designed to be compatible on Monkey and DAX HONDA or replica.
- Disc mounting center distance (3 holes): 57,5mm
- Sprocket mounting center distance (3 holes): 47mm
- Hub / rim mounting center distance (4 holes) :
- Lateral: 64,5mm
- Diagonal: 91.5mm
The set is complete and ready to mount (bearings, jaws and flange included).
