Reference 30601-073

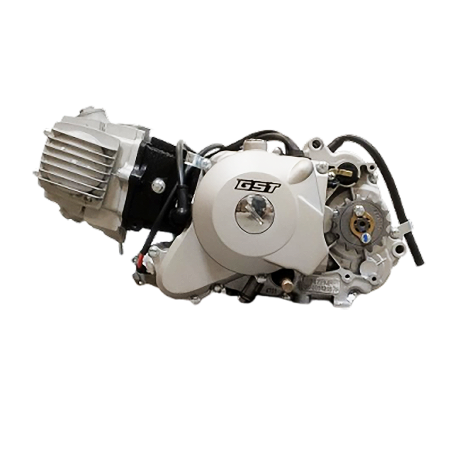

88cc, 4-speed manual clutch engine.
Electric starter.
Brand LIFAN sold with pipe, ignition and ignition cover, kick and selector.
Compatible clutch cable available under part no. : 30807-038
Compatible carburetor : 30103-006
Each motor comes with 5 round male lugs + 5 female lugs to connect your wiring harness!
Deliverable on
1 week
4-speed manual clutch and neutral gearbox (type N1234).
Kick start or electric start.
Bore x stroke: 47 x 49.5mm
Gearbox output pinion shaft diameter: 17mm
Engine type HONDA DAX with same stud spacing.
We advise you to drain the storage oil present in the engine, oil available HERE
Ignition color matches:
- Black/red: + coil
- Green: ground (-)
- Blue/white: CDI
- Yellow: + controlled for lights (+12V)
- White: + controlled for battery charging (+12V)
- Green/white: neutral indicator
