Reference 30601-070

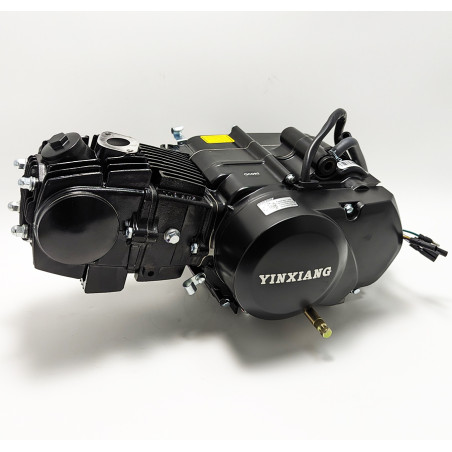

Complete 110cc engine YX type 1P52
Sold with pipe, ignition and ignition cover, kick and selector.
Manual clutch.
Compatible clutch cable available : HERE
Engine type HONDA, same stud spacing.
Each motor comes with 5 round male lugs + 5 female lugs to connect your wiring harness!
Deliverable on
1 week
Complete 110cc engine YX type 1P52.
Sold with pipe, ignition and ignition cover, kick and selector.
With manual clutch and 1N234 gears
We advise you to drain the storage oil present in the engine, oil available HERE
Original HONDA engine.
- Piston diameter: 52.4mm x 49.5mm stroke
- Cylinder height 70mm without skirt
- Oil capacity: 900ml
- Max power: 5.4 kW at 7500 rpm (7.5 hp)
- Max. torque: 7.0 N.m at 6500 rpm
Stud center distances HONDA.
Compatible pre-adjusted carburettor: part no 30103-033
Lights and indicators can be connected to this motor (12V output).
Ignition color matches:
- Black/red: + coil
- Green: ground (-)
- Blue/white: CDI
- Yellow: + controlled for lights (+12V)
- White: + controlled for battery charging (+9V)
- Green/white: neutral indicator
