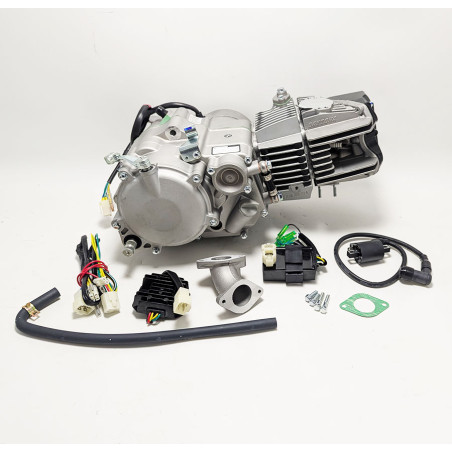

Engine DAYTONA ANIMA 190cc 4 valves 5 speeds

New version of the 190cc 4-valve engine, designed to offer performance, reliability and ease of use in mini 4-stroke.

Automatic decompression camshaft for easy starting and no kickback.

New ignition system with integrated voltage regulator and 12V output for headlight power.

Reinforced crankcase and modified gearbox spacing for better engine utilization.

Approximate power: 22 HP.

Technical specifications

Single SOHC camshaft cylinder head - 4 valves.
Two 24.5 mm intake valves and two 21 mm exhaust valves.

Bore: 62 mm with high-strength ceramic-treated aluminum cylinder and high-compression piston.

Stroke: 62 mm.
Cylinder height: 80 mm.

Quiet 94-linktiming chain.

6-disc manual clutch.

5-speed transmission.

Total engine weight: 29 kg.

Ignition and intake

Full racing-type ignition with specific CDI.

Inlet pipe mounting center distance: 58 mm.

Inlet pipe supplied Ø 30 mm, without sleeve.

Recommended carburetor settings (PE28)

Needle: JFN.
Cup: 3.0.
Needle clip: central position.
Idle jet: 42.
Main jet: 112 to 115.
Air screw: 1¾ to 2 turns.

Items included with engine

Spark plug ER9EH.
Intake pipe Ø 30 mm.
Gearbox output sprocket 15 teeth (pitch 420, inner diameter 17 mm).
Electrical harness.
CDI 4 curves.
High-voltage coil and interference suppression.

Additional information

Kick required: 16 mm axle.

Large cylinder head cover for easy access to timing chain and rocker arms, facilitating engine maintenance.

Black rubber pads between the fins are removable anti-vibration shims.

Storage oil must be changed before use.

Dimensions

Width of upper casing mountings: 94 mm.
Width of lower casing mountings: 83 mm.
Total motor width: 28 cm.
Total engine length: 46 cm.

THE BENCHMARK FOR MINI 4-STROKE COMPETITION ENGINES!

We take particular care in packaging these engines.
