Cylinder kit KITACO 75cc fonte 6VOT

Kit KITACO 75cc high performance and high resistance for 6 volt engines HONDA with 50cc cylinder head, DAX ST50, MONKEY Z50, CHALY CF50, ZB50...

For 6 volt engines HONDA.

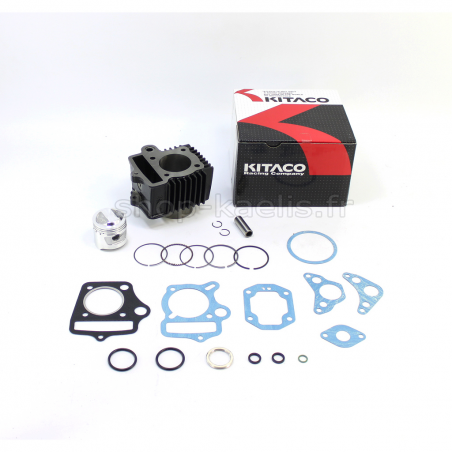

Includes cast iron cylinder diameter 48mm, complete piston and engine seals.

Cylinder height 63mm with 49cc logo, compatible with 50cc cylinder head.

For an assembly with 70cc cylinder head it is necessary to mount the piston HONDA reference 306033-072 or 306033-094 on our site.

Dimensions of the piston :

- Diameter: 48mm

- Total height all included : 49mm

- Middle height of the piston pin/piston head (without the dome): 20mm

- Middle height of the piston pin/piston head (with the dome): 24,5mm

- Total length of the piston from the head to the lowest part of the piston (without the dome): 44,5m

Reference KITACO: 212-1013480

Product forbidden on public roads, use only in competition or on closed and private circuit exclusively.
