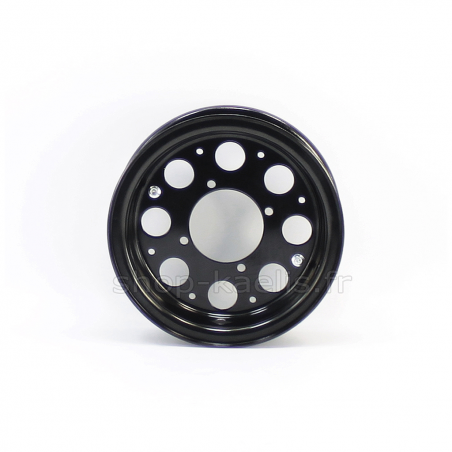

8 inch rim with black anodized aluminum hoops for Monkey or Gorilla.
Compatible hubs HONDA or SKYTEAM.
Width in inches : 3.00
The width is measured inside edge to edge (1 inch = 2.54cm).
Outside dimensions:
Thinnest flange total width of half flange 42mm.
The widest flange is 50mm.
Total length of the two flanges is 92mm edge to edge.
The two flanges are to be assembled with 8 screws, they are provided.
Internal diameter for the passage of the hub: 75mm
Center distance for fixing to the hub (4 holes)
- Lateral: 64,5mm
- Diagonal: 91,5mm
