Reference 30705-140

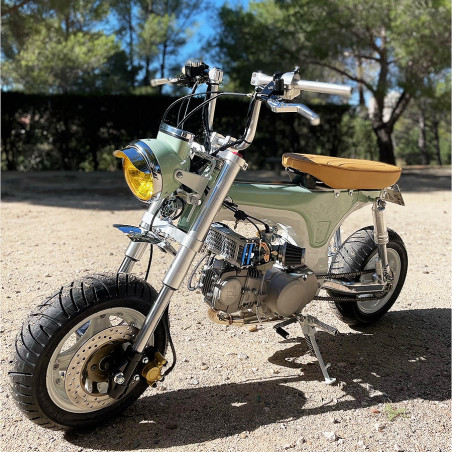

New-model 45mm upside-down fork SYMOTOS for DAX, complete, ready-to-install and very comfortable.
Compatible with all DAX Honda and Chinese frames, 2.5L or 5.5L, whatever the displacement and brand.
Original DAX handlebar clamps need to be changed or modified, as the center column nut falls right off in the middle!
Headlight brackets available part no 30706-093
Handlebar clamps compatible with original folding Dax handlebars part no 30705-052
Compatible bridges for changing handlebars available : HERE
Compatible mudguard brackets ICI or ICI
Brake pads available : ICI
You can also screw your mudguard under the lower fork crown, with 6mm threaded holes.
Out of stock
1 week
We recommend replacing the Chinese oil with quality 10W oil (like this one )
The original DAX disc front hub can replace the hub + star supplied with this fork without modification.
Please note: headlight brackets are not included! You can mount your turn signals on them, available : HERE
Ready-to-install 45mm upside-down forks for DAX.
Greatly improves handling and comfort compared to the original fork.
Compatible with all Honda and Chinese DAX frames, 2.5L or 5.5L, regardless of displacement.
Fully bled brake system with 220mm offset disc, integrated stop switch.
Fork tubes diameter 45mm total length 65cm.
Meter cable and drive.
Steering column ball bearings.
Hub with 12mm diameter axle and spacers + star compatible with all DAX rims.
Steering lock system compatible with DAX Honda 12V only.
Racing brake pads available, part no 30407-015
