Reference 30705-080

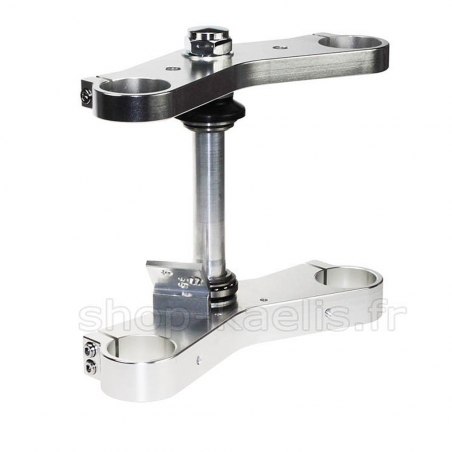

Full machined aluminum fork crowns.
Can be mounted on DAX Honda or replicas (Skyteam, Jincheng, TNT City, Spigaou etc)
Allows the mounting of 45mm diameter fork tubes.
The plate of blocking direction (for Honda) present on the lower tee is removable.
Dimensions :
- Offset 25mm (offset between the column axis and the center of the fork tube).
- Distance between the two fork tubes: 199mm
- Column bearings in external diameter: 41mm
- Total width of the tees: 254mm
- Thickness of the lower tee: 28mm
- Thickness of the upper tee: 18mm
- Bridge fixing distance: 10cm (10mm diameter holes)
Deliverable on
1 week
Complete fork tees in machined aluminum. Can be mounted on Monkey and PBR or on DAX (different steering bearings axis) available in stock, tell us your bike in comment ! Allows the mounting of 45mm diameter fork tubes.
The plate of blocking direction (for Honda) present on the lower tee is removable. Dimensions : Width between the two tubes: 154mm Bearing of steering bearings in external diameter: 41mm Total width of the tees: 254mm Thickness of the lower tee: 28mm Thickness of the upper tee: 18mm Center distance of bridge fixing: 10cm (holes in diam.
10mm)
