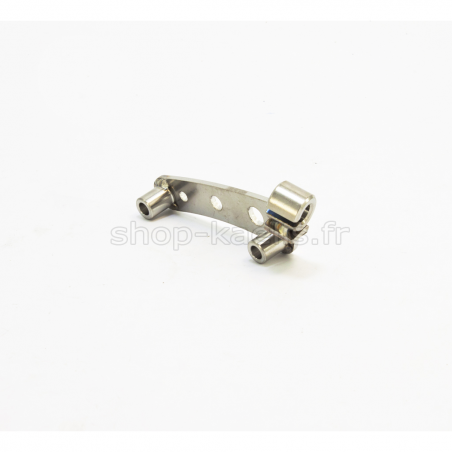

Stainless steel clutch cable stop for engine TAKEGAWA on DAX.
This plate allows the good maintenance of your clutch cable, specific for the DAX frame!
The passage between the frame and the clutch cam on the crankcase is very reduced on DAX.
Supplied with its two fixing screws: 6x90 and 6x45
Fixing center distance: 73mm
Total thickness at the level of the spacers: 17mm
Insertion diameter for cable end: 8mm
Reference TAKEGAWA: 50300-126-T02 or 00-02-0384
(Screw reference 00-00-0175 + 00-000361 or 00-00-0603)
