Reference 30106-080

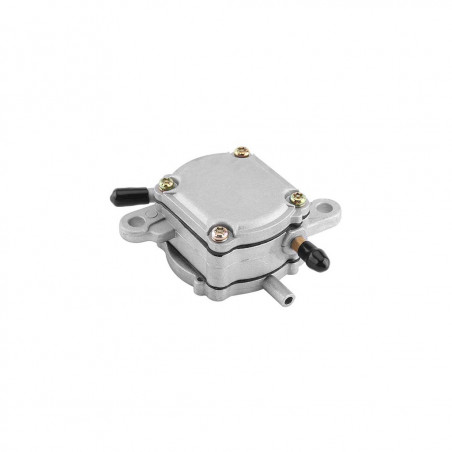

Gasoline pump type MIKUNI.
Square" format.
Ideal on motorcycle with insufficient depression for example the DAX on which the level of the tank is almost the same as the carburetor.
Threaded fitting for installation available: HERE
This jet must be installed on the intake pipe or on the carburettor body on the cylinder head side.
T or Y fitting available: ICI
Deliverable on
3 weeks
Gasoline pump type MIKUNI.
Powerful vacuum.
Brass fuel inlet and outlet:
Inlet parallel to the air connection pipe and outlet to the carburettor diagonally across the pump body.
The 3rd connection, light gray in color, must be connected to the intake pipe or carburetor when the location is available (suction)
Diameter of inlet and outlet pipes: 5mm
Dimensions :
Length: 58mm
Width: 45mm
Thickness: 30mm
The 3rd connection must be connected to the intake pipe or carburettor when the location is available (suction).
