Reference 30103-051
Original KEIHIN PE24 4-stroke carburetor kit with chrome plated cup and adjustable needle.
Pre-tuned for 125cc Skyteam with 40 slow jet (KEP) and 100 main jet (KEC).
WARNING: the intake pipe is a Chinese pipe, not a high end model, the carburetor works fine with it.
Deliverable on
1 week
Original KEIHIN PE24 4-stroke carburetor kit with chrome plated cup and adjustable needle.
Pre-tuned for 125cc Skyteam with 40 idle jet (KEP) and 100 main jet (KEC).
The tank level is adjustable.

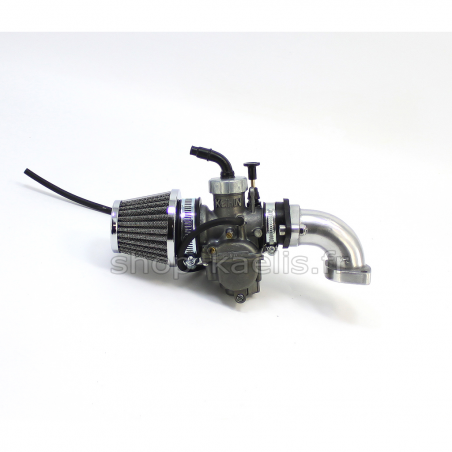

Caution: carburetor delivered mounted with a cable choke and not a pull tab as on the picture.
Delivered ready to mount with + intake pipe and flexible sleeve TAKEGAWA + gasket + 46mm conical air filter + stainless steel screws and clamp.
Works perfectly on our 4 stroke motorcycles, tested and approved by many customers.
We recommend you to cut half a centimeter of sheath on some SKYTEAM to gain in length of cable so that the cup goes down well to the bottom.
A longer cable for the original gas handle does not exist, so you will have to modify your cable.
Inlet pipe connection diameter: 31 mm
Air filter connection diameter: 45 mm
We still advise you to order with your carburetor main jets and idle jets to adjust your carburetion at best, for example one idle jet in 42 and two main jets in 95 and 105 in the case of a 125cc Skyteam.
The flexible sleeve TAKEGAWA is also available in retail on our website
