Reference 30103-083
Top-of-the-range carburetor for 4-stroke motorcycles.
Model PWK 28mm with flat plug and adjustable power jet.
Main jet type KEA: 118
Idle jet type KEP : 28
Cup size : 3.5
Pipe compatible : 30102-030
Diameter for air filter : 50mm but a 49mm fits perfectly.
Diameter for flexible sleeve: 35mm but a 34mm will be compatible.
Deliverable on
1 week

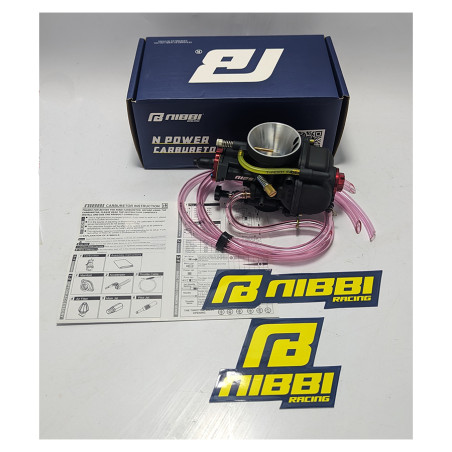

The NIBBI PWK 28 carburetor is specially designed for 4-stroke motorcycles, offering high performance and excellent engine responsiveness. It is ideally suited to engines from 138cc to 190cc, for both sport and leisure use.
Quick access to the underside of the bowl allows quick and easy replacement of the main nozzle, facilitating carburetion adjustments.
The machined, red-anodized aluminum cup cover provides both sturdiness and a touch of racing aesthetics.
Featuring an all-aluminum body with an elegant anthracite treatment, this carburetor is distinguished by its high-end finish and high resistance to wear and corrosion.
For optimum carburetion adjustment, we recommend the use of KEA main jets and KEP idle jets.
