Reference 30103-053
For Dax ST70 model, exact replica of Keihin mounted on older 6V models.
Compatible with Honda DAX airbox (34mm diameter), petrol tap integrated into tank.
Manual starter.
Inlet pipe available reference : 30101-069
Gasket and 20mm insulating ring available part no 30102-007
We advise you to get your main jet in 65 or order it as the supplied jet is a 60 : ICI
Partial repair kit: Available ICI
Complete repair kit : Available HERE
Also compatible with 12V DAX Honda, you'll need to cut the small elbow above the carburettor cap to gain 1cm of travel for the throttle cable.
Deliverable on
2 weeks

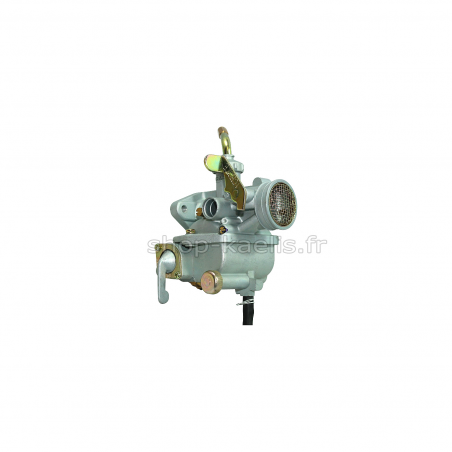

Carburetor for Dax ST70, exact replica of the Keihin mounted on older 6V models.
Compatible with Honda DAX airbox (diameter 34 mm), fuel tap integrated into the tank.
High-performance carburettor pre-tuned for Honda or 70cc replica engines.
Ideal for restoring your HONDA DAX or fitting to replicas with air box in the frame axis.
Honda airbox available part no 30105-070
Manual starter.
Inlet pipe mounting center distance: 48 mm
Main jet: 60 (KEV type)
Idle jet: 35 (Keihin PC type, also available in 38 on our site)
Plug diameter 15 mm
Carburetor inlet diameter: 15.5 mm
Identical to model HONDA no longer produced part number: 16100-045-712
Repair kit with gaskets available on our site.
