Reference 30103-022

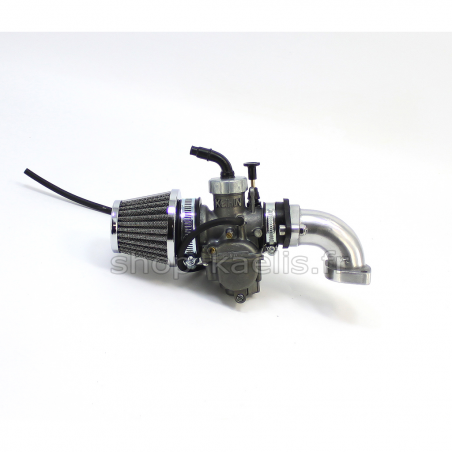

Carburetor kit 4 strokes KEIHIN PE24 original with chrome plated ball and adjustable needle KITACO.
Non-contractual picture. Lever choke, not pull.
The only carburetor with optimal performance on all 125cc Skyteam / Lifan / YX / Zongshen / Zenhua...
WARNING : the intake pipe is a Chinese pipe, not a high end model, the carburetor works very well with it.
Deliverable on
1 week
Original KEIHIN PE24 4-stroke carburettor kit with chrome-plated cup and adjustable notch needle, model KITACO.
Bowl level is adjustable.
Delivered ready to install with + intake pipe and flexible sleeve TAKEGAWA + gasket + 44mm conical air filter + stainless steel screws and collar.
It is necessary to fit an insulating bakelite ring under the intake pipe to prevent your carburetor from overheating. (not included)
Works perfectly on 125cc 4-stroke motorcycles, tested and approved by many customers.
Carburetor-mounted jets:
Main (KEA): 115
Idle (KEP): 52 (we recommend 40 idle on 125cc bikes)
We recommend that you cut 1cm of cable sheath on some SKYTEAM models to save cable length, so that the ball goes all the way down to the bottom.
There's no such thing as a longer cable for the original throttle, so you'll have to modify your own.
Inlet pipe fitting diameter: 31 mm
Air filter connection diameter: 45 mm
We strongly recommend that you always order main jets and idle jets with your carburetor, so that you can fine-tune your carburetion!
The flexible sleeve TAKEGAWA is also available in retail item no.: 30102-028
For ZB or PBR, we recommend the purchase of a multi-position ring part no.: 30101-003
ATTENTION: the intake pipe is a Chinese pipe, not a top-of-the-range model. The carburetor works very well with it.
