Reference 30103-010
We supply the top-quality NIBBI brand, no longer engraved Keihin on the carburetor body.
Available complete with pipe and filter: HERE

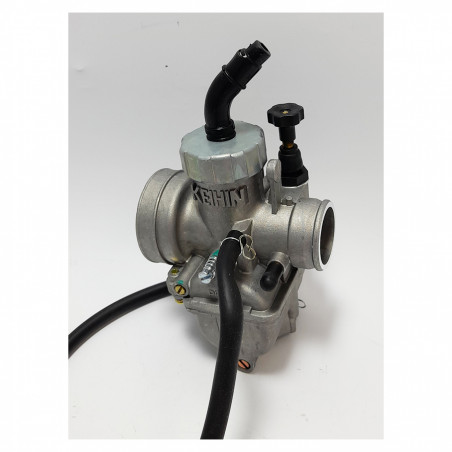

4-stroke carburetor reproduced from KEIHIN PE24, very good quality workmanship.
Chrome-plated cylinder head, adjustable float and needle.
Main jet: 112
Idle jet: 38
The two brass inserts on the side are fitted with two small watertight rubber plugs.
For 125cc: fit 45 idle and 105 main jets, and your engine will run perfectly!
Out of stock
4 stroke carburetor type KEIHIN PE24 replica of very good quality.
With chrome plated cup and adjustable needle.
The tank level is adjustable.
The manual choke delivered on this carburetor is a small vertical puller!
Works perfectly on our 4 stroke motorcycles, tested and approved by many customers. Assembly planned with flexible sleeve.
Are already mounted in the carburetor :
Main jet: 112
Idle jet : 38
Caution : requires short jets KEIHIN KEC
Inlet pipe connection diameter: 31 mm
Air filter fitting diameter: 45 mm
We strongly advise you to always order with your carburettor main jets and idle jets to adjust your carburettor in the best way.
