Reference 30703-060
The turnbuckles on the aluminium swingarm are grey, no longer gold-plated.

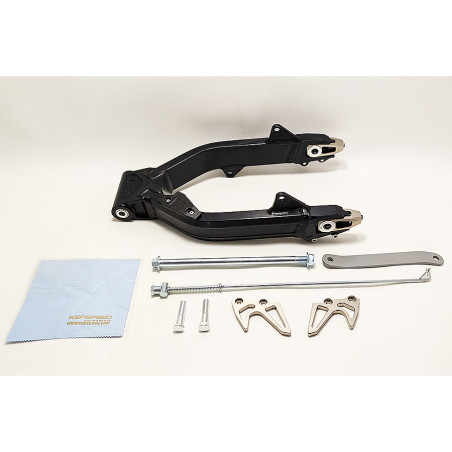

Aluminum swingarm +6 KEPSPEED for DAX Honda and replicas (Skyteam, TNT City, Spigaou, Zenhua etc...)
Cut-to-size aluminium slide tensioner system.
Supplied with shock-absorber mounting bolts and chain guard, as well as brackets for workshop stand + wheel axle and brake rod.
You don't need to fit longer shock absorbers, as the mountings remain in the same place as the original arm.
Out of stock
Aluminium swing arm +6 KEPSPEED for DAX.
Aluminum slide tensioner system cut in the mass.
Delivered with shock absorber fixing screws and protection pad for the chain as well as supports for workshop stand.
Choice of arm color, polished aluminum or fully anodized black!
Very rigid model, well reinforced and very well designed, mounted on needle cage.
Very good quality aluminum providing a robustness to any test!
Dimensions :
- Total length all included: 42cm
- Internal distance (width) at the passage of the wheel: 17cm
- Center distance between the arm axis and the rear wheel axis: 37cm (tensioners in central position)
- Width of the arm at the rear all included: 22cm (at the wheel axle)
- Width of the arm at the front all included: 9,6cm (at the frame axle)
- Thickness of the aluminum profile: 25mm and height: 50mm
- For rear wheel axle diameter 12mm and swing arm axle diameter 10mm.
Requires the installation of a longer chain than the original one, a 110 links for example.
